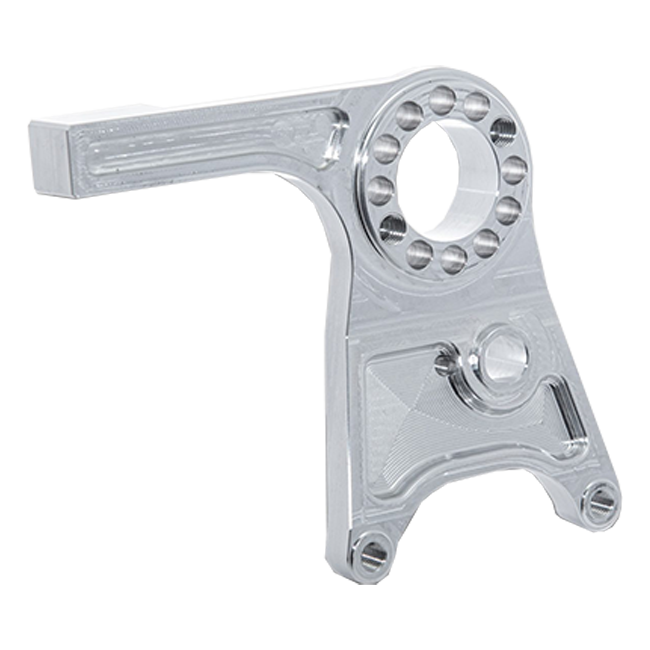

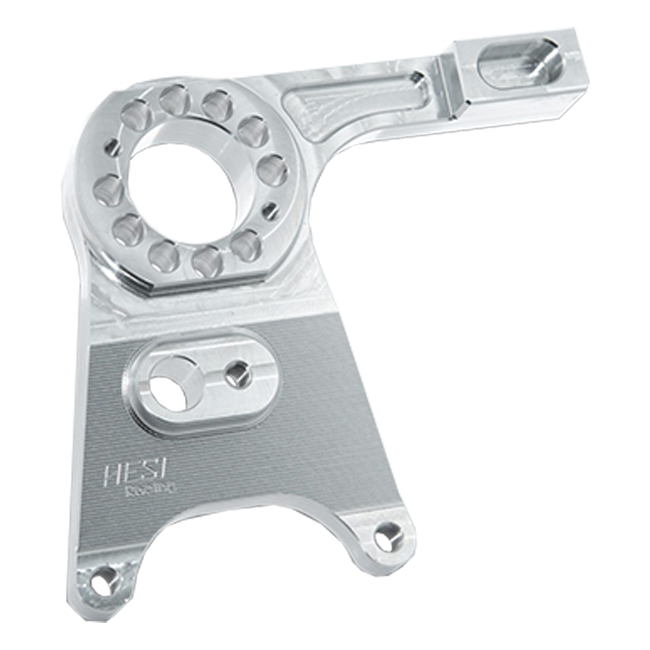

Rear brake caliper bracket 64mm for Yamaha YZF-R6 RJ27 2017–2026. Lightweight brake carrier for quick rear wheel changes on the Yamaha R6. This rear brake caliper bracket with 64mm mounting has been developed for the Yamaha YZF-R6 RJ27 from model year 2017 to 2026. It is the right solution for riders who want to specifically optimize their R6 for trackdays, racing, and frequent tire changes.

When combined with a suitable aftermarket brake caliper, the Hesterberg Cad/Cam quick-change system makes installing and removing the rear wheel noticeably easier. Especially on the race track, a properly set up brake carrier saves time, reduces stress, and ensures a controlled process during wheel changes.

For riders who take weight and function seriously

This 64mm version is designed for low weight and maximum real-world usability. Compared with the original OEM setup, more than 500 g of weight savings on unsprung masses are possible. Especially on a sportily ridden Yamaha R6, less weight at the rear wheel can positively support handling and direct on-track feedback.

The brake caliper bracket is manufactured from high-quality 7075-T6 aluminum. Precise CNC machining ensures a clean fit and makes the bracket a consistent racing component for demanding riders.

Benefits of this Yamaha R6 brake caliper bracket

• Compatible with Yamaha YZF-R6 RJ27 from 2017 to 2026
• 64mm mount for suitable aftermarket-Brake Calipers
•  More than 500 g lighter than the OEM setup possible
• Reduces unsprung mass at the rear wheel
• CNC-machined from 7075-T6 aluminum
• Facilitates fast rear wheel changes for track use
• Brake carrier can be connected to the chain tensioner
• Prevents the brake caliper from falling off during wheel changes
• Ideal for race track, trackdays, and R6 racing conversions

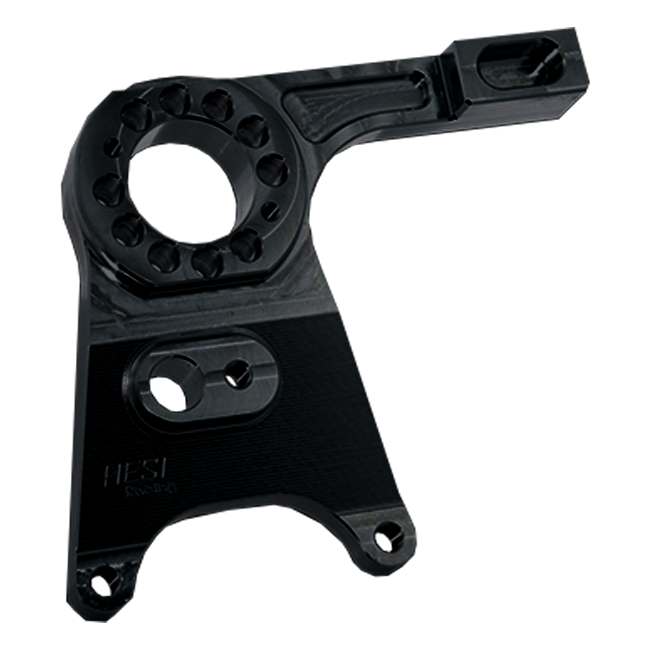

• Available in natural or black anodized

More efficiency during wheel changes

When operating on the race track, a rear wheel change must work quickly and reliably. This R6 brake carrier with quick-change system helps avoid typical issues during removal.

By adding threaded holes in the chain adjuster, the brake anchor can be connected directly to the chain adjuster. This keeps the brake caliper cleanly in place when removing the rear wheel. This provides better control during tire changes and prevents unnecessary fiddling in the pits.

Why this system is designed for Aftermarket-Brake Calipers

The purpose of this conversion is not just to position the brake caliper differently. What matters is a fast, safe, and repeatable wheel change.

With OEM brake calipers, it can happen that during removal Brake Pads shifts or falls out. That is exactly what costs time and turns a quick change into a longer screw-fastening session. With a suitable 64mm aftermarket brake caliper, this risk is reduced and the wheel change stays much more relaxed.

Important notes for installation and use

• No approval certificate available
• For track use only / race track operation
• Not approved for use on public roads
• New brake line required
• Usable only with a compatible aftermarket brake caliper
• Installation by qualified personnel recommended

Optimize your Yamaha R6 RJ27 for the track now

With the Hesterberg Cad/Cam rear brake caliper bracket 64mm, you make your Yamaha YZF-R6 RJ27 lighter, more maintenance-friendly, and better prepared for fast tire changes on the racetrack.

Order now and upgrade your R6 with a professional quick-change system.
