K-Tech KTR-5 fork with Through Rod Damping System 160-022-770
K-Tech KTR-5 fork with Through Rod Damping System 160-022-770
Delivery time on request
K-Tech KTR-5 fork with Through Rod Damping System (TRDS)
Article number: 160-022-770
The K-Tech KTR-5 front fork is the consistent further development of the proven KTR-4 fork and sets with the innovative Through Rod Damping System (TRDS) New standards in racing suspension technology. With her state -of -the -art damping system, it delivers maximum control, stability and driving experience - even under extreme racing conditions.
The TRDS system Use a 25 mm cartridge and enable independent damping circles for Compression and rebound. This construction ensures reduced hysteresis, improved dynamics and optimized reaction times. In addition, the system fully eliminates temperature -related fluctuations, which ensures a constant damping performance without "fade".
Made of high -quality materials and under the strictest tolerances, the KTR-5 fork A new level of racing performance and is the first choice on race tracks like the British Superbike Championship and the Isle of Man TT.
Product advantages of the K-Tech KTR-5 fork:
✔️ Innovative Through Rod Damping System (TRDS): Reduced hysteresis, independent damping circles and constant performance.
✔️ Temperature stable: No performance losses due to temperature fluctuations - constant damping in all conditions.
✔️ High quality materials: Outside pipes made of 7075 aluminum, DLC-coated sliding tubes with superfinish processing for minimal friction.

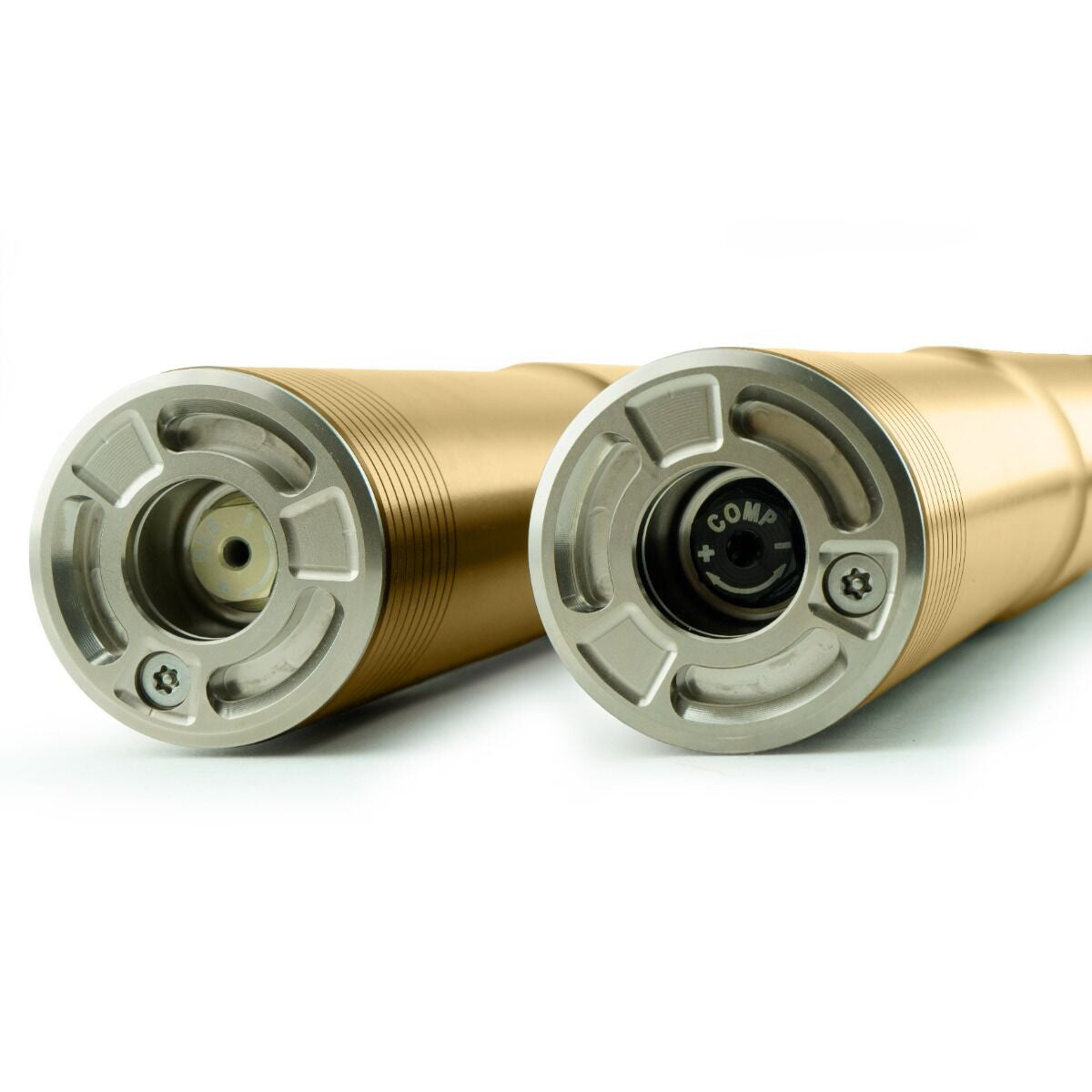

✔️ Precise setting options: 30 clicks for compression, 30 clicks for rebound and 18 mm preload setting.
✔️ Maximum stability: Achribar from 7075 aluminum for the highest strength and durability.
✔️ Fully equipped: Including three pairs of feathers and tools for individual adjustment.
✔️ Renner: Used at the highest racing level - British Superbike Championship and Isle of Man TT.
Technical data of the K-Tech KTR-5 fork:
- Length: 770 mm
- Savior (hub): 135 mm
- Inner diameter: 43 mm
- Outside diameter: 54.5 mm (top), 58 mm (below)
- Spring: 10.00 N
- Compression clicks: 30 times adjustable
- Rebound clicks: 30 times adjustable
- Preliminary tension: 18 mm adjustable
- Material outer pipes: 7075 aluminum
- Slide pipes: DLC-coated, superfinish processed
- Achrant material: 7075 aluminum for maximum strength
- Discover diameter: 290–320 mm (with 108 mm central calibers)
- Used feathers: Large selection of spring characteristics, three pairs of feathers in the scope of delivery
Scope of delivery:
- 1x K-Tech KTR-5 fork
- 3 pairs Springs For individual adjustment
- Tools To finish the suspension
Mounting instructions:
⚠️ Important: For the assembly of the K-Tech KTR-5 fork, special Retrofit clamps, Handlebar and Axle inserts needed.
🔧 The installation should only be done by a Authorized K-Tech Service Center take place to guarantee maximum security and optimal performance.
🚨 Only suitable for use on race tracks!
Why the K-Tech KTR-5 fork is the ideal choice for racing:
With the state -of -the -art Through Rod Damping System (TRDS) offers the K-Tech KTR-5 fork An incomparable chassis control that was specially developed for extreme racing conditions. Precise setting options, high -quality materials and uncompromising stability make you the best choice for ambitious racing drivers.
Order now-article number: 160-022-770-and raise your racing performance for a new level!
